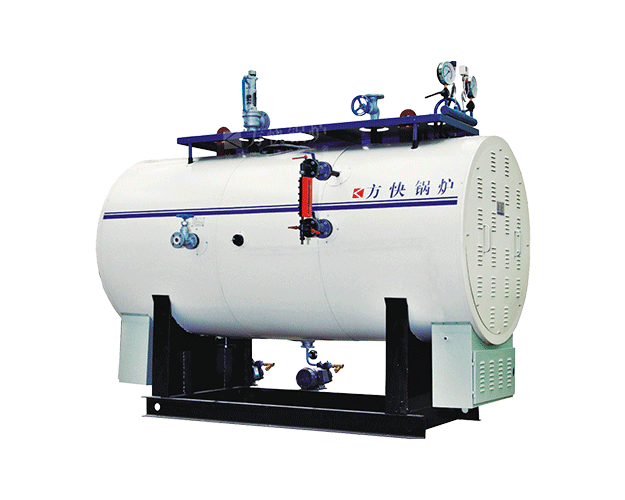

Electric Heated Steam Boiler

Electric Heated Steam Boiler

Capacity:0.5-4 t/h

Pressure: 8~12.5 bar

Introduction:Designed for steam boiler customer using electric as energy. Advanced technique makes the thermal efficiency as high as 98%; meet strictest emission standards. This boiler fits the most stringent standards of emission. Integrated design provides users with convenient installation, immediate usage and high efficiency.

 Chat Online Messages Email

Features

01

Anti-Leakage Design

Select electrical components and resistors strictly to ensure electrical safety. Automatic power outages protect equipment and your production safety. The waterproof design ensures the boiler to run smoothly.

02

Automatic Drain

The control system will test the concentration of ions in water in real time. The control system will test the concentration of ions in water in real time. When the concentration exceeds the set value, the electromagnetic blowdown valve will open automatically, thus realizing automatic blowdown.

03

Low Pollution

Benefiting from the efficiency of the boiler playing to its limit, this boiler has a comprehensive function of pollution solution. That leads a substantial reduction in emissions of harmful substances such as NOx.

Parameterss

Model Rated power Current Rated evaporation Rated steam pressure Rated steam temperature Boiler size Drain outlet Water inlet Steam outlet Weight
Length Width Height
Unit kW A t/h MPa ℃ mm mm mm mm mm mm t
WDR0.5-0.8-Ⅱ 350 608 0.5 0.8 175 2540 1880 1845 DN40 DN25 DN40 1.28
WDR1.0-1.25-Ⅱ 750 1040 1 1.25 194 2810 1895 2250 DN40 DN25 DN50 2.29
WDR2.0-1.25-Ⅱ 1500 2250 2 3585 2240 2290 DN50 DN40 DN80 3.902
WDR4.0-1.25-Ⅱ 3000 4500 4 4585 2600 3595 DN50 DN40 DN100 6.51

∗Take 38.3MJ/Nm³ as the low calorific value of natural gas

∗As the technology is constantly updated, it is subject to change without notice. For detailed parameters, please refer to the headquarters of Fangkuai Boiler co., LTD.
