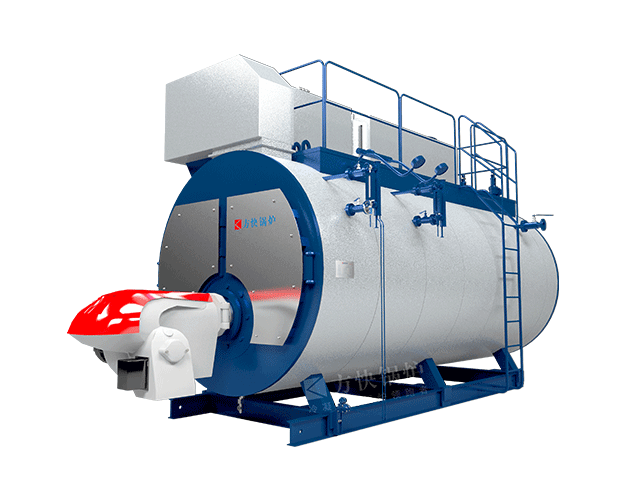

Integrated Condensing Steam Boiler

Integrated Condensing Steam Boiler

Capacity: 1-20 t/h

Pressure: 10~16 bar

Introduction:Integrated design concept makes this steam boiler product different from the usual products. You will spend less area and less fuel consumption when you adopt this boiler in your factory or your heating system.

 Chat Online Messages Email

Features

01

Advanced Structure

The integrated structure is a newly designed structure which applies on steam boiler. Compared with the tradition split three pass wet back structure, this boiler takes less area and makes better performance.

02

High Efficiency

This steam boiler has a waste heat using method and that makes the thermal efficiency can be as high as 96-98%. The product exhaust temperature can be reduced to 60 ℃.

03

Low Pollution

Benefiting from the efficiency of the boiler playing to its limit, this boiler has a comprehensive function of pollution solution. That leads a substantial reduction in emissions of harmful substances such as NOx.

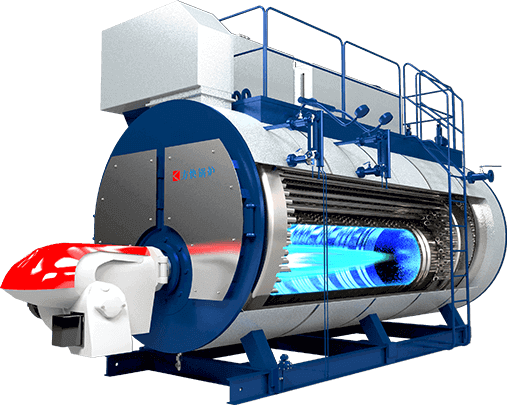

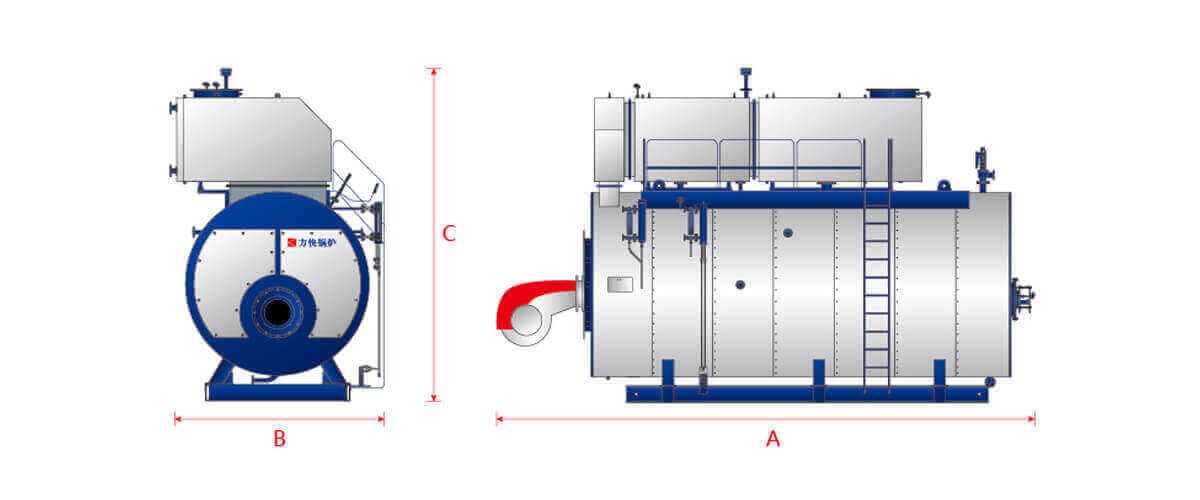

Product profile and dimension drawing

Parameterss

Model Unit WNS1
1.0-YQ 		WNS2
1.25-YQ 		WNS3
1.25-YQ 		WNS4
1.25-YQ 		WNS6
1.25-YQ 		WNS8
1.25-YQ 		WNS10
1.25-YQ 		WNS15
1.25-YQ 		WNS20
1.25-YQ
Rated evaporation t/h 1 2 3 4 6 8 10 15 20
Corresponding calorific value 104kcal/h 64 128 192 256 384 512 640 960 1280
Combustion control mode Fully automatic two-piece fire Full automatic ratio adjustment
Fuel consumption Diesel kg/h 63.1 126.2 189.3 252.5 378.7 504.9 631.2 946.7 1262.3
Heavy oil kg/h 65.6 131.2 196.8 262.4 393.7 524.9 656.1 984.2 1312.2
Natural gas Nm³/h 66.7 133.4 200 266.7 400.1 533.4 666.8 1000.2 1333.6
City gas 6170 135.4 270.9 406.3 541.7 812.6 1083.5 1354.3 2031.5 2708.6
Electric power Oil KW 3.6 8.9 14 16 18 29 34 69 79
Gas KW 3.2 8.5 13 16 18 29 34 61 67
Boiler max size A mm 3650 4650 5340 6170 6760 7720 7940 9300 9500
B mm 2320 2920 2990 2930 3160 3710 3770 5390 5770
C mm 2970 3640 3860 4170 4390 5210 5210 5490 5930
Valve pressure MPa 1.6(2.5)
Water inlet-DN mm 25 40 40 40 40 50 50 50 65
Main air outlet-DN mm 50 65 80 100 125 125 150 200 200
Drain outlet-DN mm 40 40 50 50 50 50 50 50 50
Safety valve interface-DN mm 40 50 50 50 65 65 80 100 100
Relief valve outlet-DN mm 50 65 65 65 80 80 100 125 150
Chimney diameter mm 300 350 450 450 550 700 700 900 900
Weight t 5.1 9.3 11.8 12.9 16.3 24.1 25.5 36.2 47.4

∗Take 38.3MJ/Nm³ as the low calorific value of natural gas

∗As the technology is constantly updated, it is subject to change without notice. For detailed parameters, please refer to the headquarters of Fangkuai Boiler co., LTD.
